560W 10 Channels Vehicle Convoy Bomb Jammer Block Frequency 20Mhz To 6GHz
Descriptions:
The vehicle-mounted mobile phone signal sealing and control system SA-VJ10 can block and control the key communication bands with potential threats in the frequency range of 20MHz to 6000MHz, and stop terrorists (or reactionary elements, illegal organizations) from using the wireless communication devices working in this frequency band to restructure RCIED. The conduct of terrorist attacks.

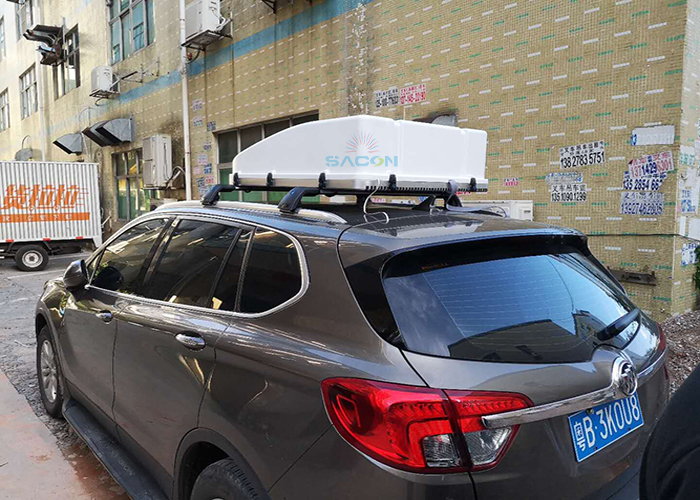

As a radio signal jamming system, it would mount on the roof and work to counter IED threats when a single vehicle in transit needs basic protection. Even power distribution of internal RF jamming telemetry
Optimum cooling for desert climate use.
features:
1. Easy to install, no need to modify the vehicle;
2. When the device is overheated, output low power, high standing
wave and other fault alarms, the system will automatically close
the faulty module to avoid equipment damage;
3. Modular construction for easy maintenance and upgrades;
4. The operation is simple and convenient, and the interference
radius is large;
5. The overall design of the system meets military requirements;
6. Each frequency and power can be switched on and off separately;
7. Wired control mode of operation;
8. The protection design of the power amplifier ensures the reliability of the device.
Specifications:
| Channel | Frequency Range | Output Power(±1dBm) | Output Power(±1dBm) |
| CH1 | 20~200MHz | Wireless Toys , FM Radio | 100W |
| CH2 | 200~500MHz | Walkie-talkie(VHF,UHF), Remote Control, Car alarm, Drone | 100W |
| CH3 | 500-1000MHz | CDMA,GSM,LTE700,LTE800 | 100W |
| CH4 | 1000~1500MHz | Drone, GPS | 100W |
| CH5 | 1500~2000MHz | DCS, PCS,GPS,AWS, | 100W |
| CH6 | 2000~2500MHz | 3G, WIFI | 100W |
| CH7 | 851~894 MHz | Cellular CDMA | 100W |
| CH8 | 902-960MHz | Cellular GSM, E-GSM, Drone | 100W |
| CH9 | 1805~1990MHz | Cellular DCS, PCS | 100W |
| CH10 | 2110~2170MHz | Cellular WCDMA | 100W |
| CH11 | 2400-2500MHz | WIFI, Drone | 50W |
| CH12 | 2500-3000MHz | MMDS, LTE2500,LTE2600 | 50W |
| CH13 | 3000-4000MHz | Future Band (Reserve) | 10W |
| CH14 | 4000-5000MHz | Future Band (Reserve) | 10W |
| CH15 | 5000-6000MHz | WiFi, WLAN,Drone | 15W |
| Power Supply: AC110-240V,DC 28V Output power: 1135W
Jamming radius: 50-800M depending on the environment signal strength |
| Power Consumption: 3400W Weight :75Kg |
| External Omni Antennas Size(L×H×W):640×540×550mm |
Humidity: 5%-95%
Working temp: -10C to +55C degree Celsius |
Applications:
Accompanying type control: sealing and controlling all kinds of mobile phone signals on the way of the vehicle; Parking type control: Block all kinds of mobile phone communication signals in emergency places in important public events or emergency places to prevent terrorists from carrying out RCIED terrorist attacks; Local area information is blocked to prevent leakage of important information.
